BC Rectangular Shaft Gearbox

• BC Series gearbox product features:
  1. BC series gearbox is a right angle shaft heavy load industrial gearbox designed as hard teethface helical gear. The period of designing and manufacturing are shorter because of the blocking design.
  2. The feature is compact construction, steady running. It can bear huge road of industry, insteaded of early international standard gearbox.
  3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° .after tempering, cementiting, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5.
  4. The products have been mainly used in heavy industrial fields, such as mine, petrochemical, electric power, metallurgy etc.

Type and specification:
Stage: 1~4 stage, Type size: 03~26

Main Parameter:
Ratio: 1.25~450
Output torque: 0.8~470kNm
Motor power: 2.8~4823KW
Installation Form: Horizontal, Vertical, Shaft installation and shrink disk installation

The weight of main unit:

Model	BC2-01	BC2-02	BC2-03	BC2-04	BC2-05	BC2-06	BC2-07	BC2-08	BC2-09	BC2-10
Weight（KG)	65	90	140	235	360	410	615	700	1000	1156
Model	BC2-11	BC2-12	BC2-13	BC2-14	BC2-15	BC2-16	BC2-17	BC2-18
Weight（KG)	1640	1910	2365	2750	3795	4160	5320	5860
Model	BC3-03	BC3-04	BC3-05	BC3-06	BC3-07	BC3-08	BC3-09	BC3-10	BC3-11	BC3-12
Weight（KG)	130	210	325	380	550	635	890	1020	1455	1730
Model	BC3-13	BC3-14	BC3-15	BC3-16	BC3-17	BC3-18	BC3-19	BC3-20	BC3-21	BC3-22
Weight（KG)	2260	2615	3540	3765	4760	5240	6050	6710	8190	8950
Model			BC4-05	BC4-06	BC4-07	BC4-08	BC4-09	BC4-10	BC4-11	BC4-12
Weight（KG)			335	385	555	655	890	1025	1485	1750
Model	BC4-13	BC4-14	BC4-15	BC4-16	BC4-17	BC4-18	BC4-19	BC4-20	BC4-21	BC4-22
Weight（KG)	2280	2605	3435	3765	4460	4930	5400	6000	7350	7850

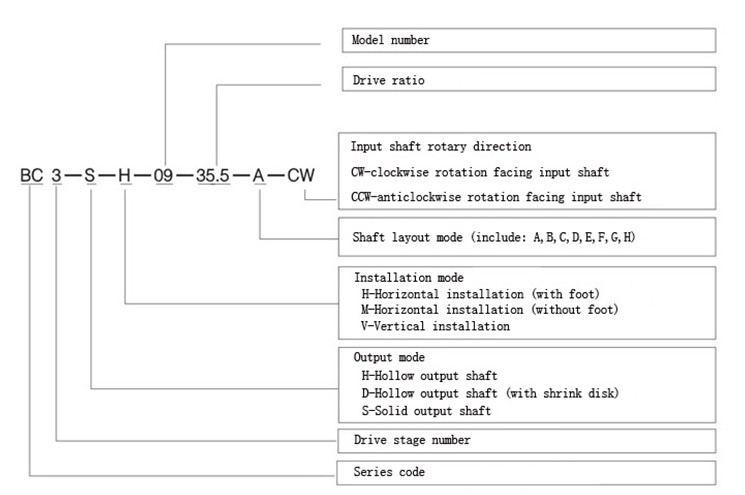

Model explanation:

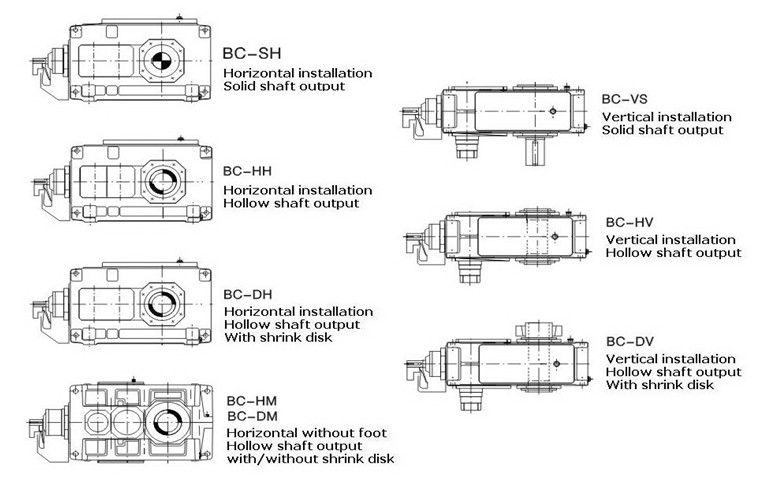

Structural style:

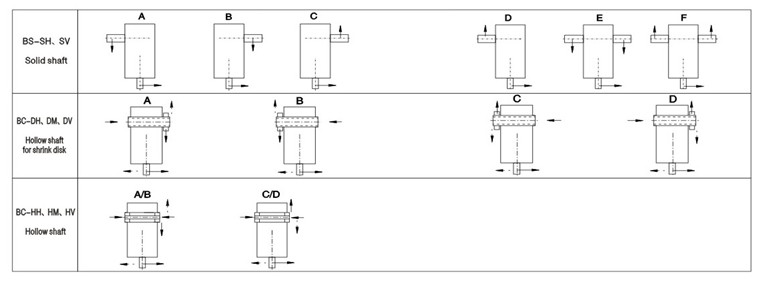

Shaft model:

Remark: 1. the "→" means the input direction of drive shaft of the working machinery.
              2. E,F for special models.

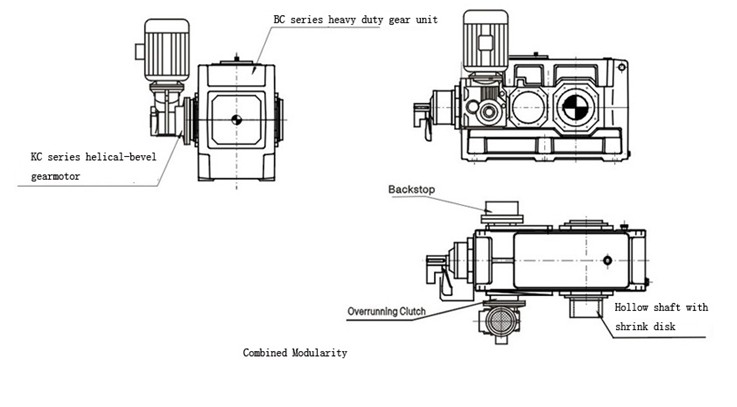

Combined modularity:
