REC series single stage helical gearmotor is a special type of RC series, which is only made up of 1-stage gear transmission and with small transmission ratio. The performance and feature are as same as RC series.Fast selection:
| Model | Shaft Dia. |
Center Height (mm) |
Output Flange Dia. (mm) |
Power (kw) |
Ratio |
Permitted Torque (Nm) |
Weight (KGS) |
| Solid (mm) | |||||||
| REC31 | 20k6 | 55h13 | 160 | 0.18~1.5 | 1.58~4.53 | 50 | 5 |
| REC41 | 25k6 | 70h13 | 200 | 0.55~4 | 1.58~5.53 | 100 | 7.5 |
| REC61 | 25k6 | 80h13 | 200 | 1.1~7.5 | 1.6~6.63 | 160 | 13 |
| REC71 | 40k6 | 90h13 | 250 | 2.2~15 | 1.61~6.28 | 300 | 22 |
| REC81 | 45k6 | 100h13 | 350 | 4~22 | 1.56~6.13 | 400 | 33 |
| REC91 | 50k6 | 120h13 | 400 | 5.5~30 | 1.62~6.45 | 600 | 61 |
| REC101 | 60m6 | 140h13 | 450 | 11~45 | 1.6~6.3 | 850 | 77 |
Remark: the weight without oil and motor, shaft and flange input add 10%.

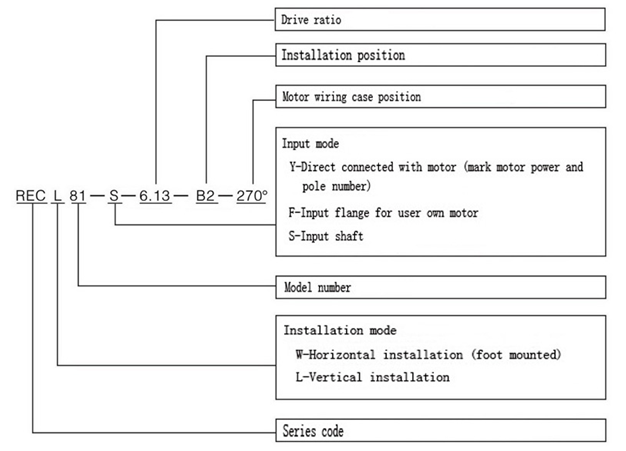

Model explanation:
