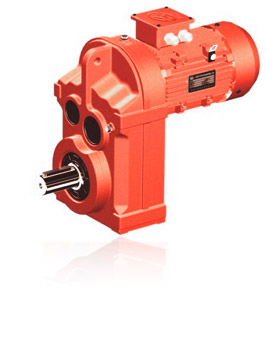

FC Parallel Shaft Helical Gearmotor


平行轴斜齿轮减速机FC parallel shaft helical gear reducer features:
1. FC series parallel shaft helical gearmotor is based on the design of parallel shaft structure , which have a center distance between input and output shaft.
2. Compact construction, steady running, high transmission efficiency, strong carrying capacity.
3. The material of gears is 20CrMnTi alloy steel and the hardness can reach to HRC58°~ 62° after tempering, cementiting, quenching etc. heat treatment. All the gears are processed by accurate grinding and the precision can reach to grade 6~5.
4. The products have been mainly used in cranes, conveyors, ceramic machinery, etc.

Type and specification: FC37~FC157

Main Parameter:
Output speed: 0.15~270rpm
Output torque: up to 50000Nm
Motor power: 0.18~200kw
Input form: directly connected with motor, flange input or shaft input.
Installation Form: Horizontal, Vertical, small flange installation, torque arm installation.

Fast selection:

Model Shaft Dia.(mm) Center Height
 (mm)		 Output Flange Dia.
(mm)		 Power
 (kw)		 Ratio Permitted Torque
(Nm)		 Weight
(KGS)
Solid Hollow
(H7)
FC37 25k6 30 70h13 160 0.12~3 4~138 180 13
FC47 35k6 35 80h13 200 0.12~5.5 4~175 360 16.5
FC57 35k6 40 100h13 250 0.18~7.5 4~197 420 27
FC67 40k6 40 100h13 250 0.37~7.5 4~197 700 31
FC77 50k6 50 120h13 300 0.75~11 4~197 1350 55
FC87 60m6 60 155h13 350 1.5~22 4~193 2500 100
FC97 70m6 70 180h13 450 2.2~30 4~203 3700 170
FC107 90m6 90 200h13 450 3~45 4~205 6500 260
FC127 100m6 100 240h13 550 5.5~90 4~202 10000 400
FC157 120m6 120 270h13 660 11~160 4~190 18000 700

Remark: the weight without oil and motor, shaft and flange input add 10%.

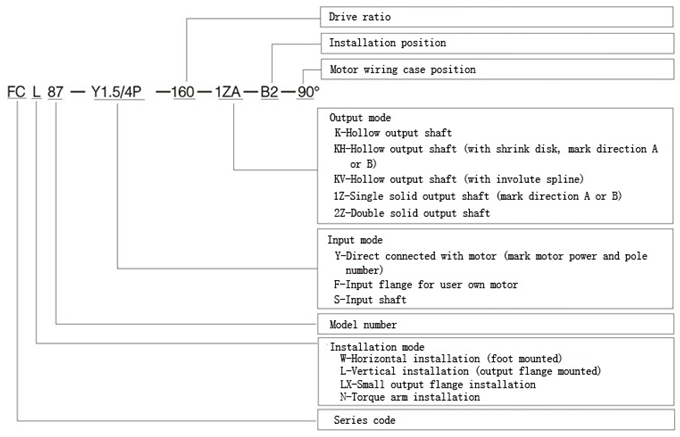

Model explanation:

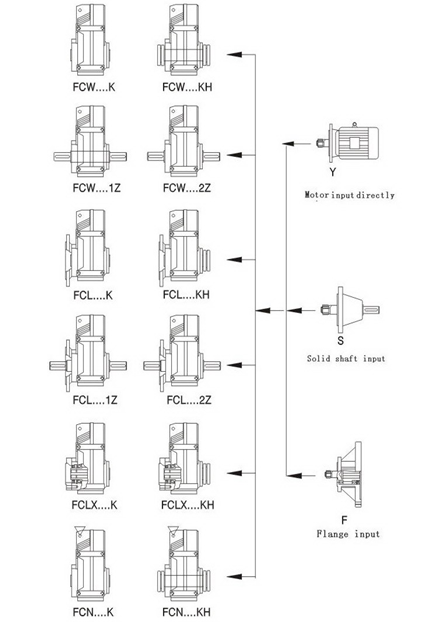

Structural style:

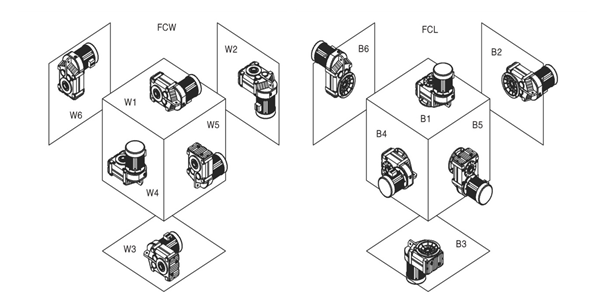

Installation position:

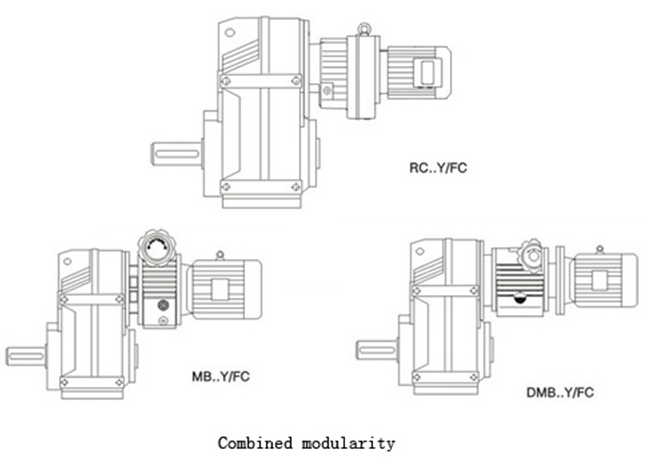

Combined modularity
