Type and specification: WJ30~WJ130
Main Parameter:
Output speed: 1.3~193rpm
Output torque: up to 880Nm
Motor power: 0.09~7.5kw
Installation Form: Horizontal or Vertical.
Fast selection:
| Model | Shaft Dia.(mm) |
Center Height (mm) |
Output Flange Dia. (mm) |
Power (kw) |
Ratio |
Permitted Torque (Nm) |
Weight (KGS) |
|
| Solid(h6) | Hollow(h7) | |||||||
| Wj30 | 14 | 14 | 40 | 80 | 0.09~0.3 | 7.5~100 | 22 | 1.5 |
| Wj40 | 19 | 18/19 | 50 | 110 | 0.12~0.5 | 7.5~100 | 55 | 2.5 |
| Wj50 | 25 | 25 | 60 | 125 | 0.18~0.7 | 7.5~100 | 120 | 4 |
| Wj63 | 25 | 25 | 72 | 180 | 0.37~1.5 | 7.5~100 | 175 | 6 |
| Wj75 | 28 | 28 | 86 | 200 | 0.55~3 | 7.5~100 | 280 | 9 |
| Wj90 | 35 | 35 | 103 | 210 | 0.75~4 | 7.5~100 | 425 | 13.5 |
| Wj110 | 42 | 42 | 127.5 | 270 | 1.1~5.5 | 7.5~100 | 585 | 43 |
| Wj130 | 45 | 45 | 147.5 | 320 | 1.5~7.5 | 7.5~100 | 850 | 67 |
| Wj150 | 50 | 50 | 170 | 320 | 2.2~15 | 7.5~100 | 1500 | 100 |
Remark: the weight is for basic model, without oil and motor

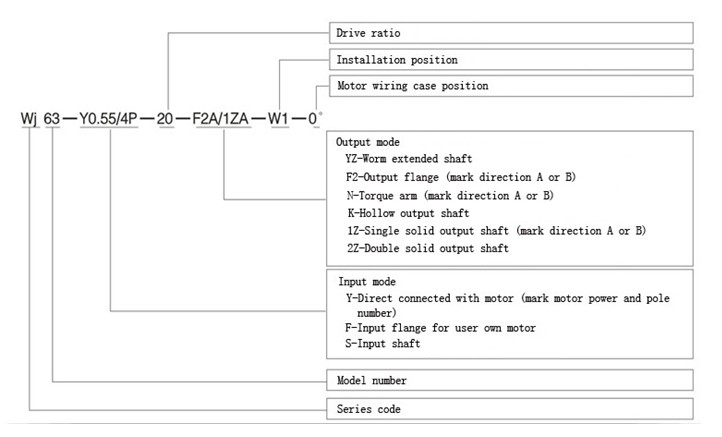

Model explanation:

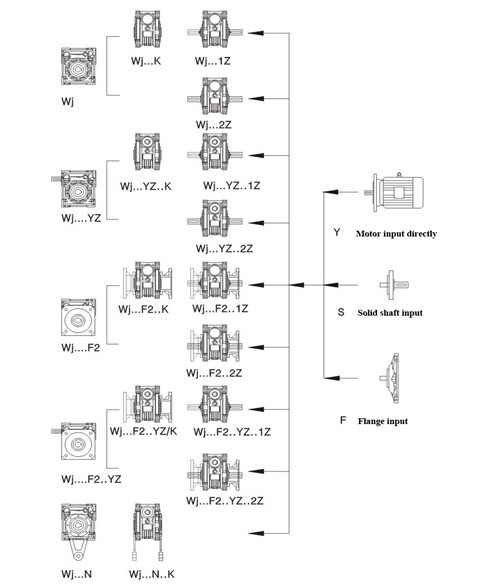

Structural style:

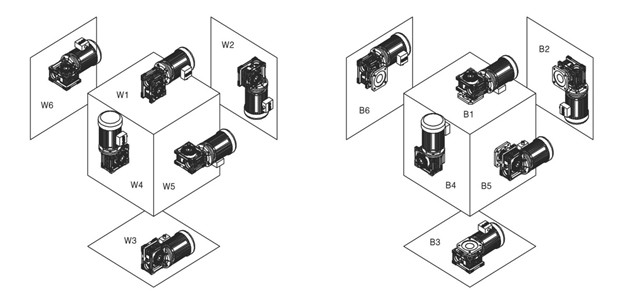

Installation position:

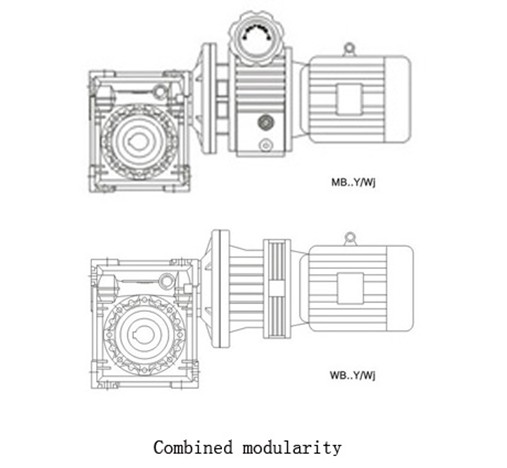

Combined modularity:
